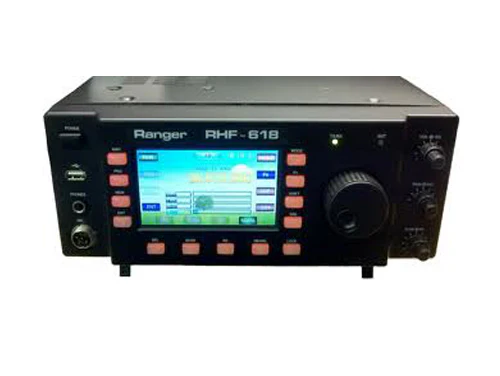

Introducing the new Ranger RHF-618 base station radio. With your amateur radio operators license, get access to the popular 10 and 12 meter radio bands at home! This radio is contains a Ranger RCI2950DX inside the Galaxy DX2547 chassis. Incorporating new technology with tried-And-true communications, this radio comes complete with a multi-color touchscreen LCD.

Ranger RHF-618 features:

•
  Noise Blanker / Automatic Noise Limiter


•
  Dimmer Control


•
  Choose a background image or upload your own!


•
  Multi-color touch-screen LCD


•
  Full mode AM/FM/USB/CW operation


•
  TX/RX operation covers 10 meters and 12 meters


•
  Built-in Calender


•
  Built-in Clock


•
  99 Programmable Memory Channels


•
  16 Programmable and scanable memory locations


•
  Power supply: 110V & 12V

Technical specifications:

•
  Frequency Range: 10 Mtr: 28.000 - 29.6999 MHz & 12 Mtr: 24.8900 - 24.9900 MHz


•
  Tuning Steps: 1 MHz, 100 KHz, 10 KHz, 1 KHz, 100 Hz


•
  Emission: USB, LSB, CW, AM, FM


•
  Frequency Tolerance: 0.005%


•
  Frequency Control: Microprocessor / Phase-Locked-Loop Synthesizer


•
  Frequency Stability: 0.001%


•
  Operating Temperature Range: 10 ºC to + 50 º


•
  Antenna Impedance: 50 W


•
  Microphone: 400 W Dynamic PTT - 6 Pin

Transmitter

•
  RF Power Output (Factory OEM): CW / AM / FM: variable 2-10 Watts RMS


•
  Peak AM: 25-28 Watts Peak power:

  SSB: 25 Watts (PEP)

  RF Power Output (Tuned-Up)

  CW / AM / FM: variable 1-10 Watts RMS

  Peak AM: 36-40 Watts Peak power

  SSB: 35 Watts (PEP)


•
  Modes: USB, LSB, CW, AM, FM, PA


•
  CW Keying: Semi break-in


•
  Carrier Suppression: - 50 dB


•
  Spurious Emission: - 50 dB


•
  Antenna Connector: UHF Type, 50 W

Receiver:

•
  Sensitivity:

  AM / CW: 0.5 µV for 10 db SINAD

  FM: 0.25 µV for 12 db SINAD

  SSB: 0.15 µV for 10 db SINAD


•
  Selectivity: - 55db


•
  Image Rejection Ratio: - 65 db


•
  Audio Output Power: 2.5 Watts @ 10% THD into 8 W

Package included:

•
  Ranger RHF618 10 and 12 Meter Base Radio


•
  Electric Microphone


•
  Built-in AC/DC Power Supply with AC Power Cord


•
  11 meter Dongle


•
  Mounting bracket and screws


•
  Owners Manual


•
  USB Cable
